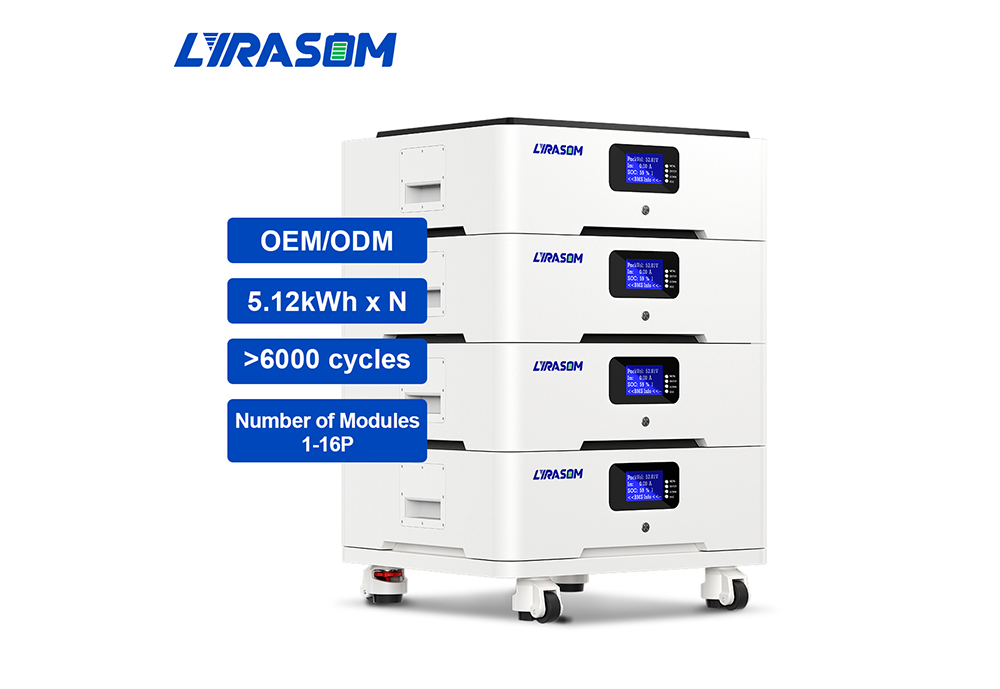

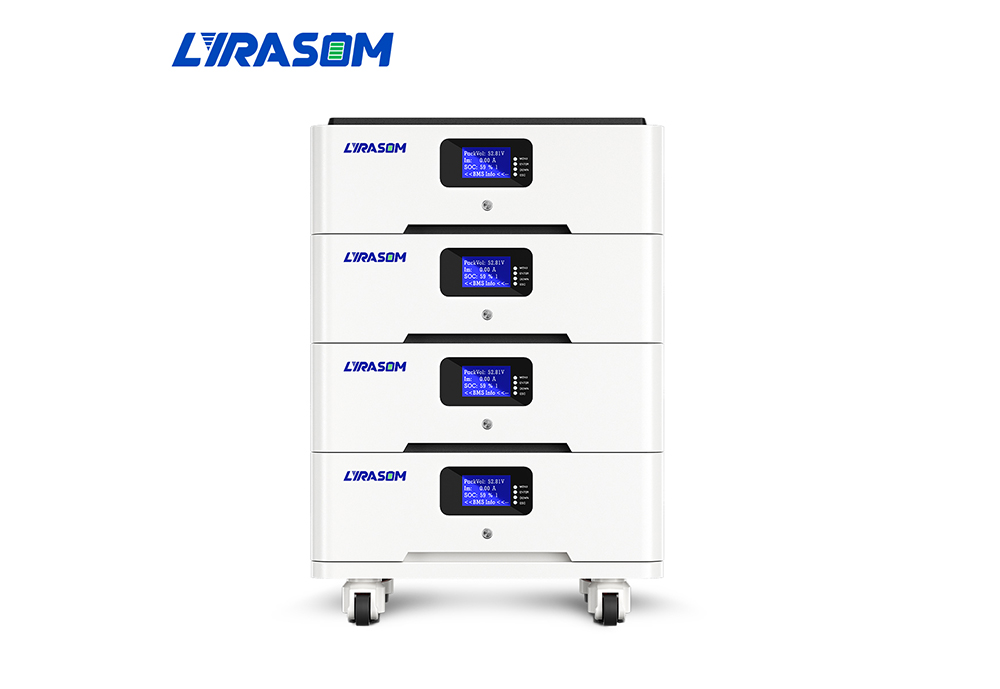

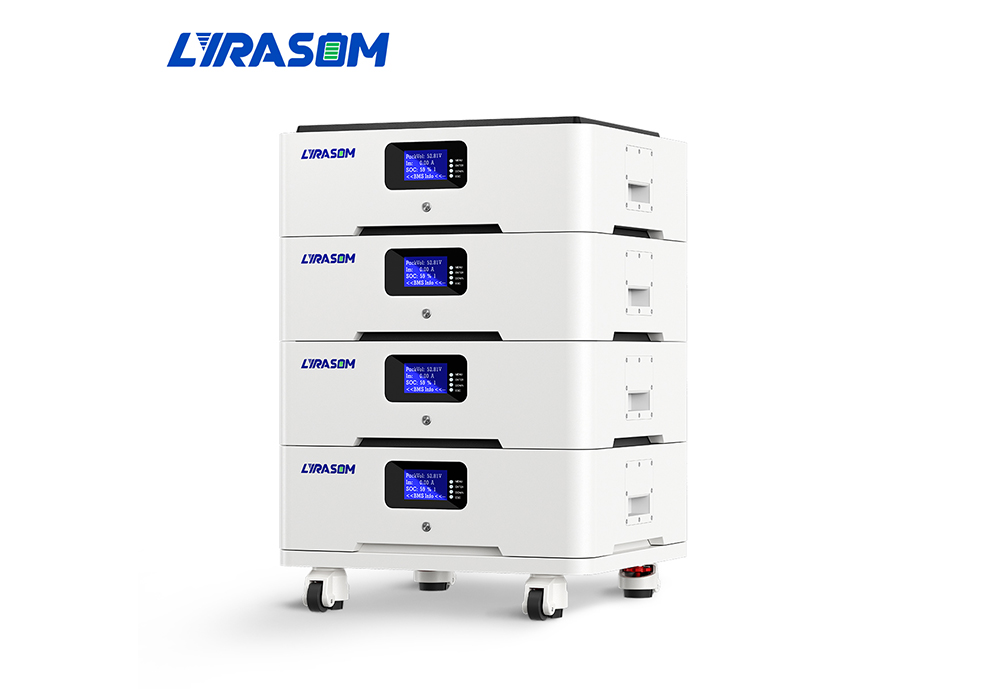

LY-5A Series Stack Mount Battery

These are Stackable Modular Battery 48V/51.2V 5KWH 10KWH 20KWH 30KWH 40KWH 50KWH LiFePO4 Battery Solar Home Energy Storage Battery.

Adopt automotive-grade A cell and automobile-grade assembly process. Support parallel system and can be expanded freely. Support multi-battery input to improve the cycle life of batteries.

Specifications Of LY-5A Series Stack Mount Battery

Product ModelLY-5A1LY-5A2LY-5A3LY-5A4
Cell TypeLifePO4
Nominal Voltage51.2V
Nominal Capacity100AH200AH300AH400AH
Nominal Power5.12KWH10.24KWH15.36KWH20.48KWH
Cycle Life>6000 cycles
Monthly Self-discharge≤3%
Charge Temperature0°C-60°C
Discharge Temperature-20°C-60°C
Max Charge CurrentRecommend10A20A30A40A
Max Charge CurrentRecommend50A100A150A200A
Peak Value@15S110A210A310A410A
Charge Cut-off Voltage58.4V
Discharge Cut-off Voltage43.2V
Communication Interfacge485. 232. CAN
Shell MaterialMatal
Protection LecelIP54

Features Of LY-5A Series Stack Mount Battery:

  • Maintenance free. Modular design for easy installation and capacity expansion.

  • Long cycle life: 6000+ times

  • Bulit-in smart BMS with multiple protection and communication functions.

  • Wide working temperature range and high reliability.

  • Multiple battery units can be connected in parallel, suitable for kinds of energy storage applications.

  • Compatible with various charge controllers and inverters.

  • Widely used for off-grid solar system storage, telecom back-up, central data center...etc.

Applications Of LY-5A Series Stack Mount Battery:

  • Residential electricity;

  • Villages where there is no electricity or there is insufficient electricity;

  • High-end villas/clubhouses;

  • Industrial and commercial users.
